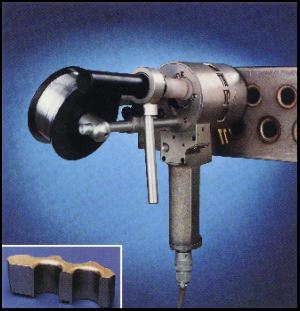

Model G450AT
Tube to Tubesheet Weldhead

G450AT

Technical Specifications

Torch Characteristics: Gas or water cooled
100 amps @ 100% duty cycle
3/32" diameter tungsten standard
1/8" and 1/16" diameter tungsten optional

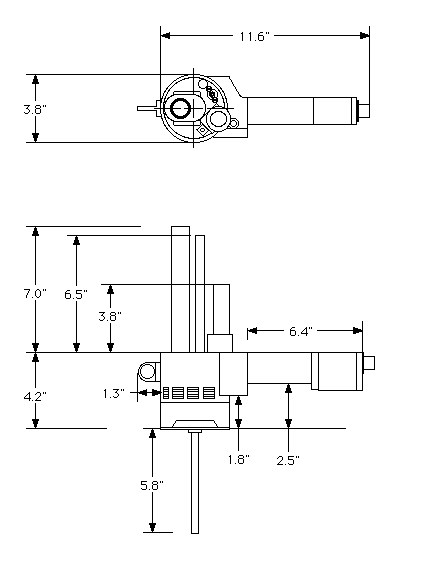

Physical Dimensions: Refer to diagrams
Weight 5 1/2lbs. (2 1/2 kg) without cables

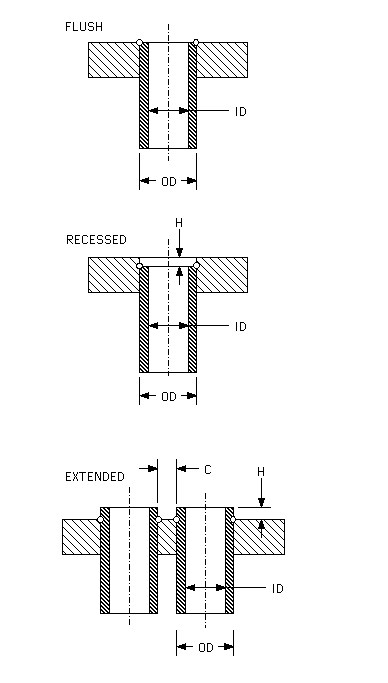

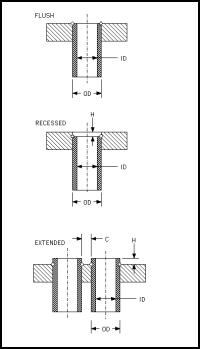

Tube Sizes: With 3/8" locator and customer-furnished mandrel:
3/8" to 1 1/2" ID
1/2" to 1 3/4" OD
Maximum Extended Joint: 1/16" H
Clearance Requirements: Refer to diagrams

Click here for a larger image

Click here for a larger image
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
