Electrodes


Pre-Ground Tungsten Electrodes

Orbital Welding, Tube Mill Welding, PTA Welding
Automated TIG/Plasma Welding, Manual TIG/Plasma Welding

Improve weld quality and consistency - provide precision at the arc
Eliminate the equipment expense and hazards of electrode grinding

Pre-Ground Electrode QUALITY SUPPORT
Each electrode is precision ground and microscope inspected to ensure that strict tolerances are met. Sealed packaging keeps the electrodes protected in transport and at your facility. Our engineering staff can provide technical support, welding assistance, electrode guide manuals, and assistance on equipment troubleshooting.
VALUE DELIVERY
We offer competitive prices and volume discounts. Save up to 70% off equipment manufacturer's prices! Commonly used sizes and blanket orders stocked for immediate delivery. Rapid turnaround for all orders.

By using Tungsten electrodes Pre-Ground to specification, welders remove many common problems from their process. They achieve weld quality and consistency with improved arc starting and arc stability, minimization of tungsten shedding and weld inclusions, more consistent weld penetration, and longer electrode life.

Step up to “The New Standard in Pre-Ground Electrodes.”

Pre-Ground Electrode Specifications

  Length Diameter Included Angle Tip Diameter Materials Finish
How to Order Specify Length .040", 1/16", 3/32",
1/8", 5/32", 3/16"
or metric equivalent
Specify Angle Specify Tip Flat Diameter 2% Thoriated
2% Ceriated
1½% Lanthanated
Plus Others!
STD or Polished
Standard Tolerance
± .002"
(± .05mm)
According to AWS A5.12 Standard ± ½° ± .002"
(± .05mm)
According to AWS A5.12 Standard 20 Ra or 6-8 Ra

Non-standard tolerances, finishes, diameters, and electrode materials available on request. Consult factory for details.

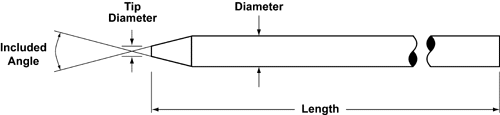

Electrode Dimensions

Electrode Dimensions Diagram

Ordering Options

  1. Use your welding equipment manufacturer's part number, if available.
    or
  2. Specify the parameters: length, diameter, included angle, tip diameter, material, and finish.
    or
  3. Describe your equipment and application. We can assist in providing the optimum dimensions for your specific needs.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
